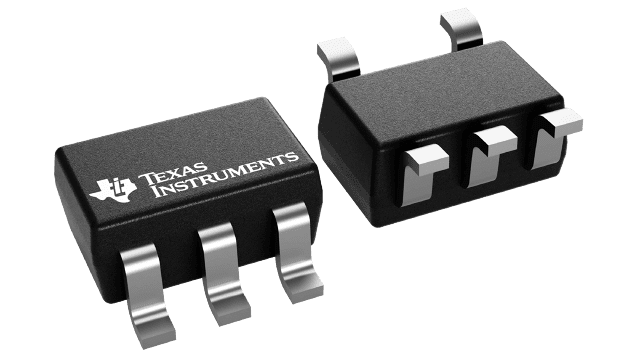

LMV321A-Q1

供应商:

描述: 汽车类、单通道、5.5V、1MHz、4mV 失调电压轨到轨输出运算放大器

物料参数

Number of channels:1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V):5.5
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V):2.5
Rail-to-rail:In to V-, Out
GBW (typ) (MHz):1
Slew rate (typ) (V/µs):1.7
Vos (offset voltage at 25°C) (max) (mV):4
Iq per channel (typ) (mA):0.08
Vn at 1 kHz (typ) (nV√Hz):33
Rating:Automotive
Operating temperature range (°C):-40 to 125
Offset drift (typ) (µV/°C):1
Features:Cost Optimized, EMI Hardened, Small Size
CMRR (typ) (dB):77
Iout (typ) (A):0.04
Architecture:CMOS
Input common mode headroom (to negative supply) (typ) (V):-0.1
Input common mode headroom (to positive supply) (typ) (V):-1
Output swing headroom (to negative supply) (typ) (V):0.02
Output swing headroom (to positive supply) (typ) (V):-0.02
Number of channels:1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V):5.5
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V):2.5
Rail-to-rail:In to V-, Out
GBW (typ) (MHz):1
Slew rate (typ) (V/µs):1.7
Vos (offset voltage at 25°C) (max) (mV):4
Iq per channel (typ) (mA):0.08
Vn at 1 kHz (typ) (nV√Hz):33
Rating:Automotive
Operating temperature range (°C):-40 to 125
Offset drift (typ) (µV/°C):1
Features:Cost Optimized, EMI Hardened, Small Size
CMRR (typ) (dB):77
Iout (typ) (A):0.04
Architecture:CMOS
Input common mode headroom (to negative supply) (typ) (V):-0.1
Input common mode headroom (to positive supply) (typ) (V):-1
Output swing headroom (to negative supply) (typ) (V):0.02
Output swing headroom (to positive supply) (typ) (V):-0.02
无库存
